80-350A Type 2 DC Charger for Fast and Safe Charging

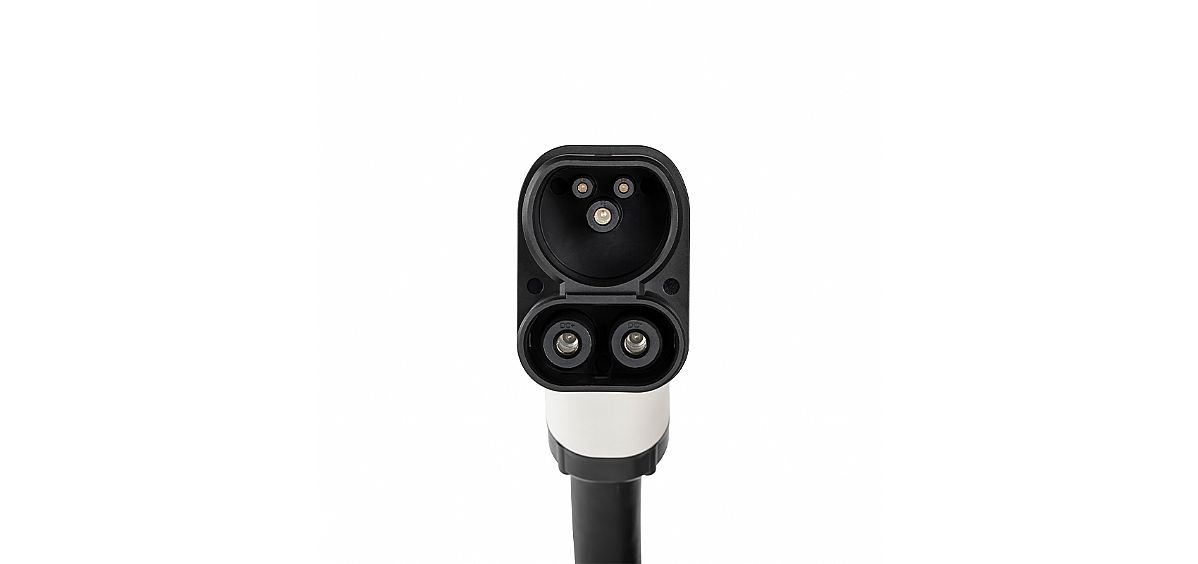

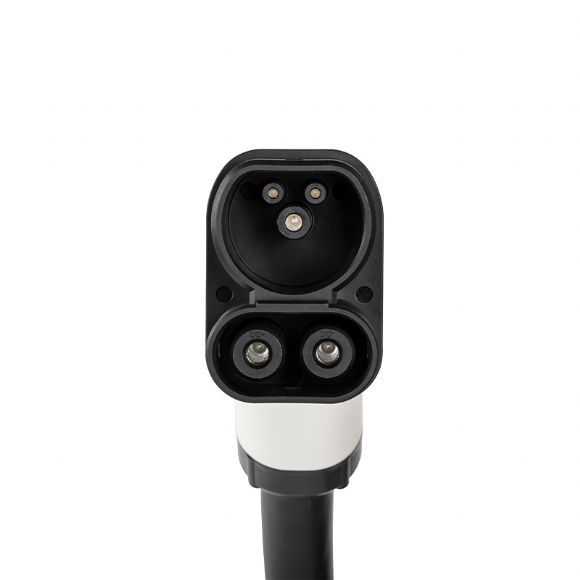

DC charging cable with vehicle charging connector and free cable end for fast charging of electric vehicles (EV) with direct current (DC) via CCS type 2 vehicle charging inlets for installation at charging stations for e-mobility (EVSE).

Request a quote

Features

Ergonomic handle
Silver-plated contacts, low contact resistance
TPU Cable with excellent flexibility, soft touch, weathering resistance, fatigue resistance and temperature resistance
Cable diameter of just 21mm for 100A; 23mm for 150A; 28 mm for 200A; 30.5 mm for 250A; 32.5mm for 300A; 35.5mm for 350A
Customized length and EVSE preparation
PT 1000 temperature sensors embedded
Lower resistance and more reliable connection between DC contacts and cable with double-side ultrasonic welding
Fast charging without cooling technology

Product Specifications

Standard	IEC 62196-3:2014
Charging mode	4
Connection mode	C
Current type	DC
Housing color	Black
Cable color	Black
Ambient temperature (working)	-30～50℃
Ambient temperature (storage)	-40～80℃
Highest altitude	2000M
Ingress protection	IP54
Insertion / Withdrawal cycles	＞10000times
Insertion / Withdrawal force	＜100N
Withstanding Impact force	Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Rated current	80A,100A,150A,250A,350A
Rated voltage	1000V
Power contact number	3(DC+, DC-, PE)
Signal contact number	2(PP,CP)
Signal pin current	2A
Signal contact current	＞100MΩ

Product Advantages

Ergonomic Design

Available in 3 series: Version 1.0, version 1.1, version 2.0. The stylish design of our EV charges combines functionality and beauty.

Safe Charging

Our EV chargers charge quickly and are compatible with Type 2, Type 1, GB, and NT connectors. Our chargers are durable and have an IP67 rating.

Durable Construction

The handle of our charging guns is ergonomically designed, intuitive, and comfortable to use.

Protective Plug Cover

We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
