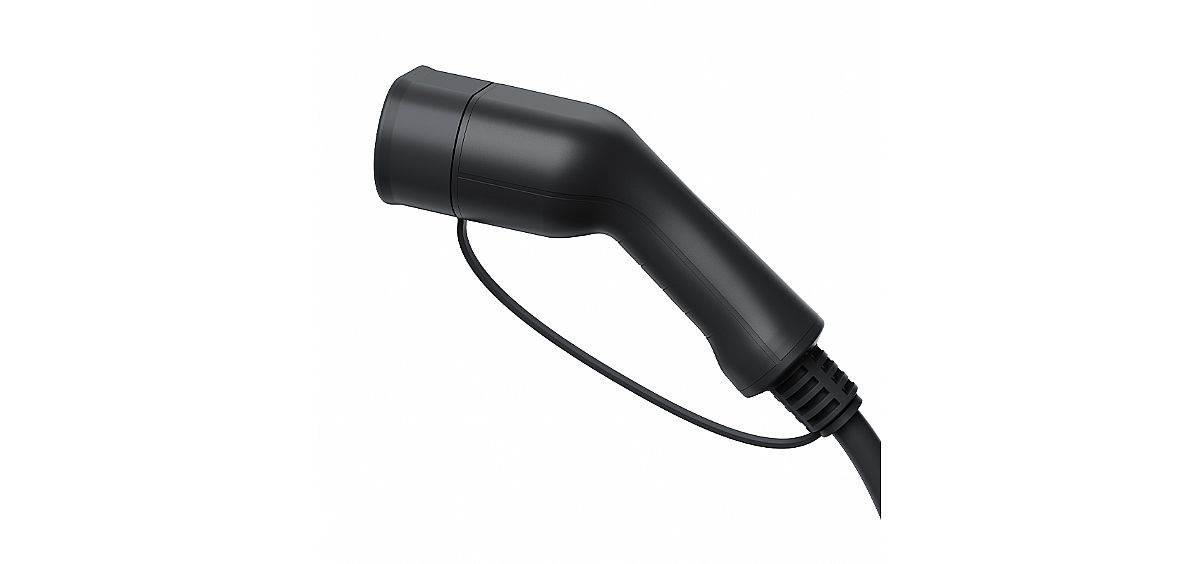

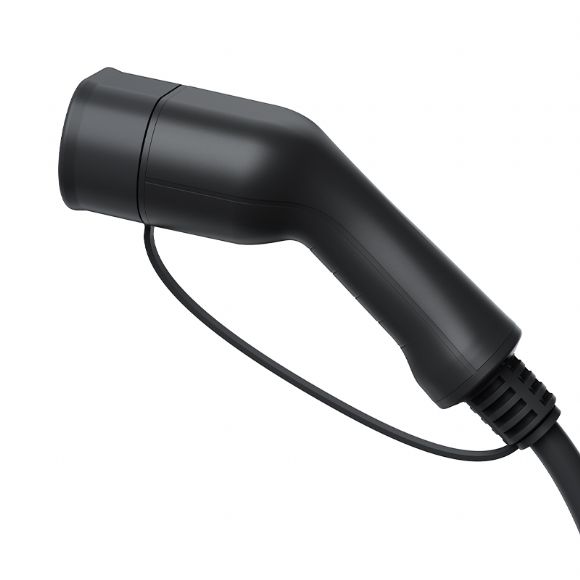

AC Type 2 Electric Vehicle Charging EV Plug, 1/3 phase, 16/32A, Optional Light integrated

NexwayEV, an OEM EVSE cable manufacturer, supplies European-standard vehicle-side charging guns that comply with the IEC 62196-1/2 standard. They are suitable for home and commercial Mode 2 and Mode 3 AC charging and can be customized to meet customer requirements.

The AC Type 2 Electric Vehicle Charging EV Plug is designed for both 1-phase and 3-phase charging and supports 16A and 32A currents. It features a smooth and simple appearance with a comfortable handle grip, ensuring easy plugging and unplugging. Constructed from high-strength thermoplastic material with a flame retardant grade of UL94 V-0, the plug is both durable and safe.

The reliable material used in its construction allows it to withstand a 1-meter drop and a 2-ton car crush, ensuring long-lasting performance even in demanding conditions. The plug is fully insulated, providing a comfortable hold while maintaining safe and reliable operation.

Request a quote

The AC Type 2 Electric Vehicle Charging Plug is available with an optional integrated light. It has CE/TUV certification and is suitable for a range of car brands, including BMW, LEAF, MG, NISSAN, AUDI, and FORD. OEM/ODM services are strongly supported, and samples are available. The product has a 2-year warranty and a rated current of 16A/32A, providing efficient and reliable charging for electric vehicles. It is available in black, white, or customized.

Product Specifications

Rated Current	16A/32A
Rated Voltage	250V/ 480V AC
Insulation Resistance	＞1000MΩ
Contact Resistance	0.5 mΩ Max
Withstand Voltage	2000V
Flammability Rating	UL94V-0
Mechanical Lifespan	＞10000 Mating Cycles
Casing Protection Rating	IP55
Casing Material	Thermoplastic
Terminal Material	Copper alloy, silver plated + thermoplastic top
Certification	TUV/ CE
Warranty	24 months/10000 mating cycles
Operating Environment Temperature	-30℃- +50℃

Ergonomic Design

This Charging EV Plug boasts an ergonomic design that has been optimized to fit the human hand, ensuring a comfortable grip and making it easy to hold and use. This design enhancement not only enhances the overall user experience but also contributes to a more efficient and user-friendly charging process.

Safe Charging

This plug features an IP55 rating, which guarantees safe use in adverse weather conditions and harsh environments. This high level of protection ensures reliable performance and longevity, even in challenging situations, making it an ideal choice for a wide range of charging applications.

Durable Construction

The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins, which are both durable and wear-resistant. This robust design ensures that the plug can withstand up to 10,000 mating cycles, guaranteeing long-term reliability and consistent performance, even in heavy-use applications.

Protective Plug Cover

The Plug includes a matching cover designed to protect the pins from moisture and contaminants, preventing damage and corrosion. This additional layer of protection ensures that the plug maintains its functionality over time, ensuring reliable performance and longevity for your EV charging needs.
