Nexway V1.0 16A/32A Type2 AC Socket/Inlet, 1/3 Phase
Sample Title
Sample Text

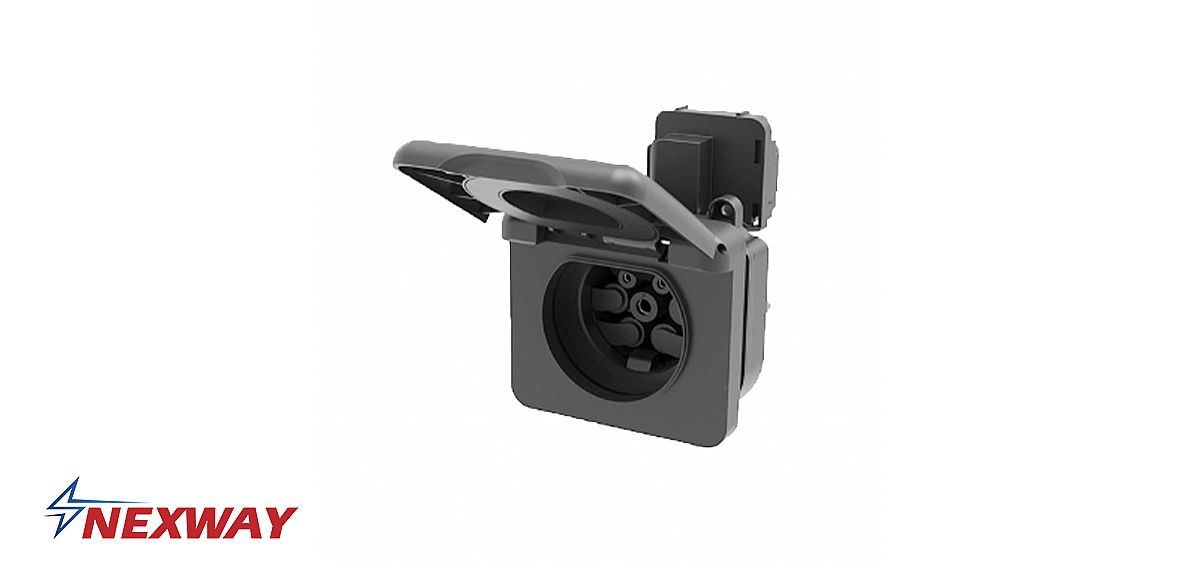

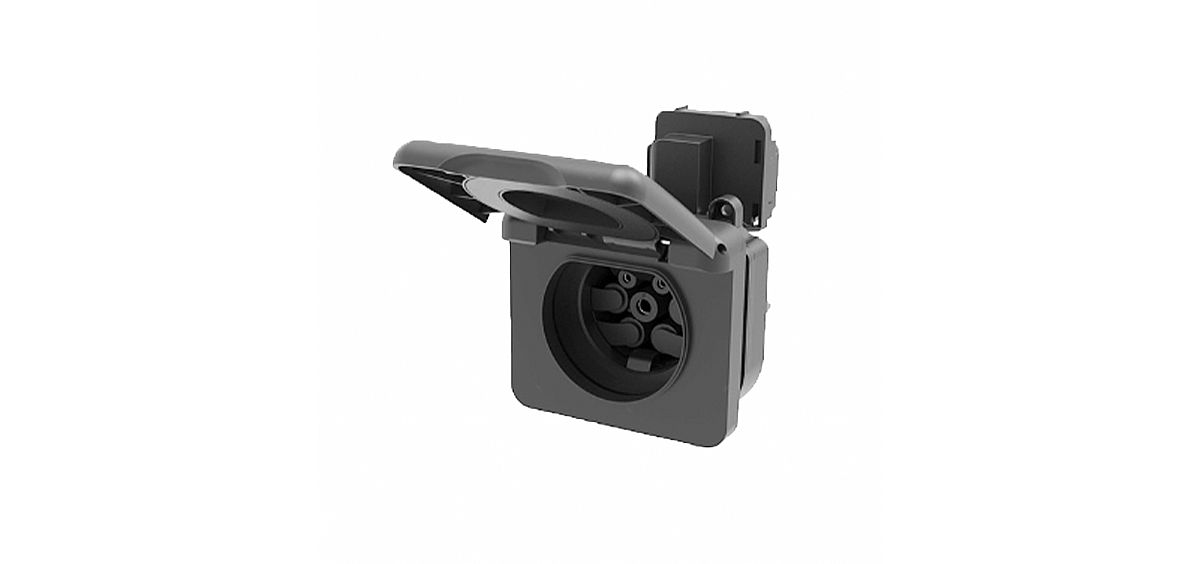

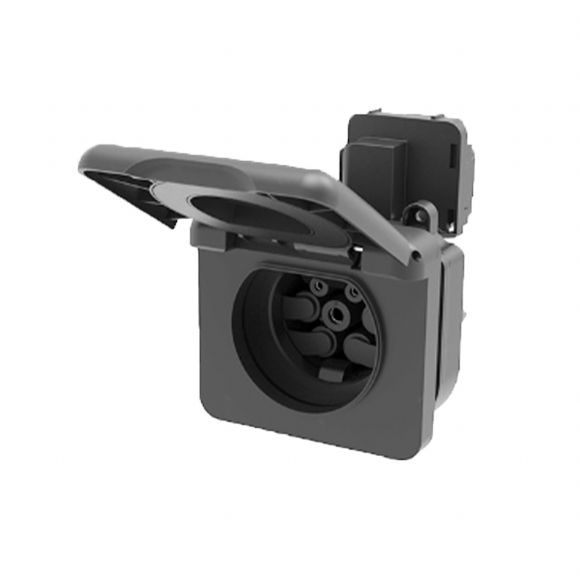

Charging station charging socket, without cable, for charging electric vehicles (EV) with alternating current (AC), type 2, IEC 62196-2, 16A /250 V (AC);32A /480 V (AC), housing: black.
Defined by the IEC 62196-2 standard (Mennekes connector).
Circular design with seven contact points (3 phase lines, 1 neutral, 1 ground, 2 signal lines).
Supports single-phase charging up to 7.4 kW.
Supports three-phase charging up to 22 kW.
Widely compatible with European electric vehicles.
Can be adapted for use with Type 1 plugs (SAE J1772).
Includes a mechanical locking mechanism for secure connection.
Facilitates communication between the vehicle and charging station.
Durable plastic housing, resistant to environmental conditions.
Commonly used in public and private EV charging stations.
Product Specifications
Definition
Standard
IEC 62196-2:2016
Charging mode
3
Connection mode
B
Current type
AC
Housing color
Black
Shell color
Black
Environmental Performance
Ambient temperature (working)
-30～50℃
Ambient temperature (storage)
-40～80℃
Highest altitude
2000M
Ingress protection
IP54
Mechanical Performance
Insertion / Withdrawal cycles
＞10000times
Insertion / Withdrawal force
＜100N
Withstanding Impact force
Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance
Rated current
16A,32A
Rated voltage
250V/480V
Power contact number
3(L, N, PE) 5(L1, L2, L3, N, PE)
Signal contact number
2(CP,PP)
Signal pin current
2A
Insulation resistance
＞100MΩ
Product Advantages
Ergonomic Design
Universal design supports AC single-phase and three-phase charging. Flexible installation reduces infrastructure costs and is compatible with a wide range of electric vehicle models.
Safe Charging
High power output capability (up to 22 kW) for shorter charging times. It supports robust communication protocols between the vehicle and the charging station for increased safety and efficiency.
Durable Construction
It is easy to install and maintain, with a high reliability and durable structure. The mechanical locking mechanism ensures a safe and secure charging process, minimizing service interruptions.
Protective Plug Cover
Associated with mature standards (IEC 62196-2), we offer customized solutions that perfectly meet your specific needs and preferences.
