Nexway V2.0 16A/32A Type2 AC Socket/Inlet

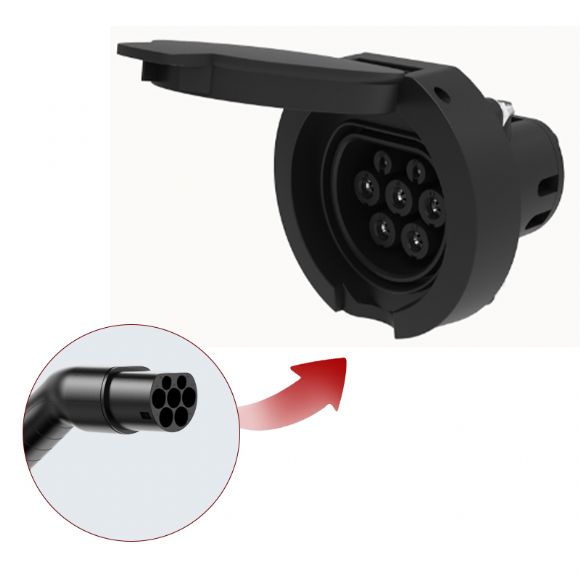

Nexway V2.0 16A/32A Type2 AC Socket/Inlet - EU-Pos03

Sample Title

Sample Text

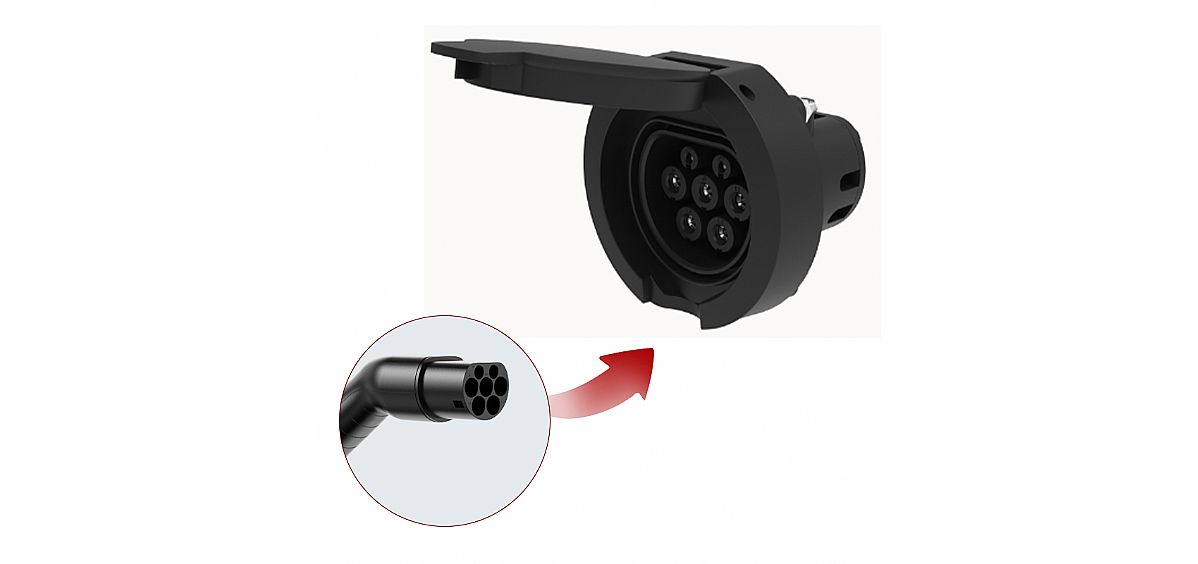

    The Nexway V2.0 16A/32A Type2 AC Socket/Inlet with an optional LED integrated shutter and electromagnetic lock is a charging station socket for electric vehicles (EV) with an alternating current (AC). It is compatible with a type 2 charging station plug,16A /250 V (AC) or 32A /480 V (AC), and is for installation on electric vehicle charging stations (EVSE).

    Request a quote

    Features

    1. Defined by the IEC 62196-2 standard (Mennekes connector).
    2. Circular design with seven contact points (3 phase lines, 1 neutral, 1 ground, 2 signal lines).
    3. Supports single-phase charging up to 7.4 kW.
    4. Supports three-phase charging up to 22 kW.
    5. Widely compatible with European electric vehicles.
    6. It can be adapted for use with Type 1 plugs (SAE J1772).
    7. includes a mechanical locking mechanism for a secure connection.
    8. Facilitates communication between the vehicle and the charging station.
    9. Durable plastic housing, resistant to environmental conditions.
    10. Commonly used in public and private EV charging stations.

    Product Specifications

    Definition Standard IEC 62196-2:2016
    Charging mode 3
    Connection mode B
    Current type AC
    Housing color Black
    Shell color Black
    Environmental Performance Ambient temperature (working) -30～50℃
    Ambient temperature (storage) -40～80℃
    Highest altitude 2000M
    Ingress protection IP54
    Mechanical Performance Insertion / Withdrawal cycles ＞10000times
    Insertion / Withdrawal force ＜100N
    Withstanding Impact force Charging interface can withstand 1 meter height drop and 2 tons of car rolling
    Electrical Performance Rated current 16A,32A
    Rated voltage 250V/480V
    Power contact number 3(L, N, PE) 5(L1, L2, L3, N, PE)
    Signal contact number 2(CP,PP)
    Signal pin current 2A
    Insulation resistance ＞100MΩ

    Product Advantages

    Ergonomic Design

    Universal design supports AC single-phase and three-phase charging. Flexible installation reduces infrastructure costs and is compatible with a wide range of electric vehicle models.



    Safe Charging

    It has a high power output capability (up to 22 kW) for shorter charging times. It supports robust communication protocols between the vehicle and the charging station for increased safety and efficiency.

    Durable Construction

    It is easy to install and maintain, with a high reliability and durable structure. The mechanical locking mechanism ensures a safe and secure charging process, minimizing service interruptions.

    Protective Plug Cover

    Associated with mature standards (IEC 62196-2), we offer customized solutions that perfectly meet your specific needs and preferences.
