V2.0 Nexway Type2 to Type2 AC EV charger

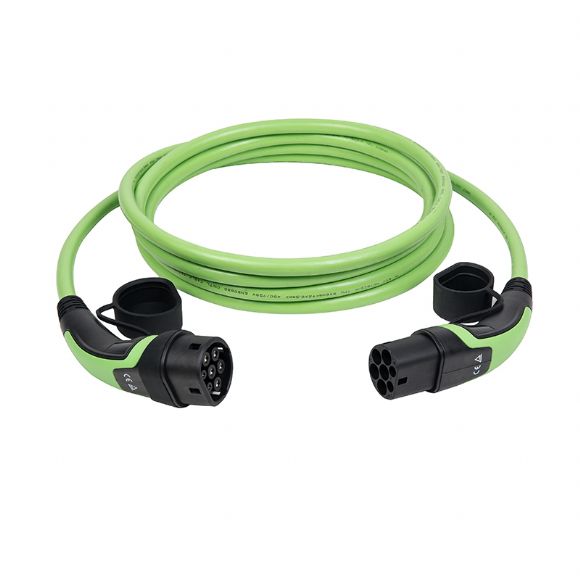

V2.0 Nexway Type2 to Type2 AC EV charger - EU-DuC03

Sample Title

Sample Text

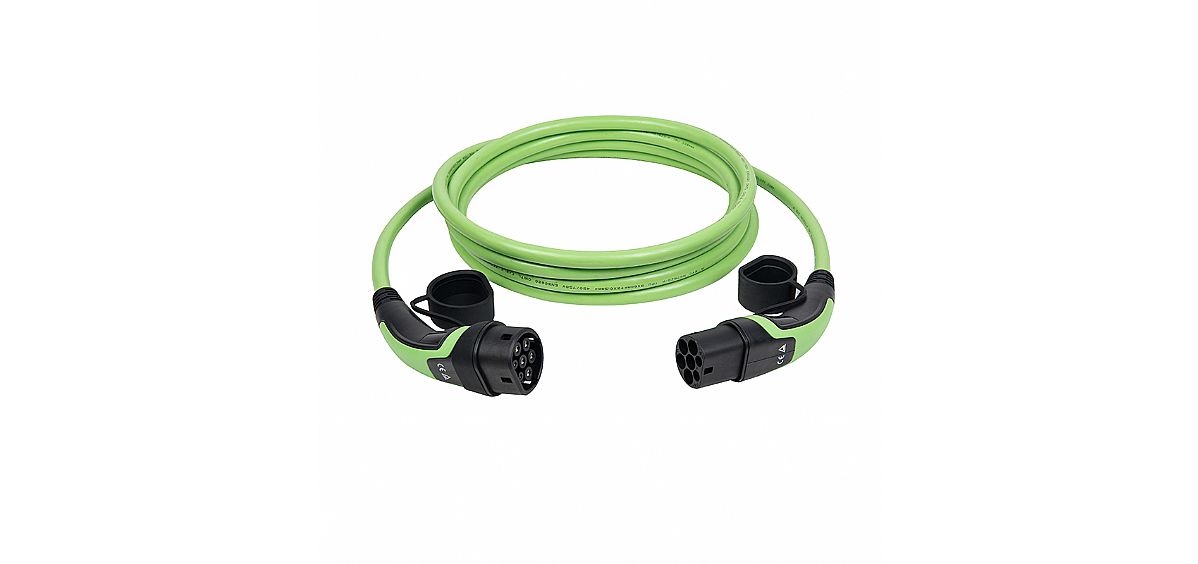

    V2.0 Nexway Type2 to Type2 AC EV charger, LED light integrated on Femal connector; this EV charger features LED indicators, supports both 16A and 32A currents, enabling flexible charging with single-phase (up to 250V AC) or three-phase power (up to 480V AC). The charger features Type 2 connectors on both ends, which is widely recognized in Europe.

    Request a quote

    Features

    1. Supports 16A and 32A charging current
    2. Compatible with 1 phase and 3 phase power
    3. Delivers up to 7.4 kW for 1 phase charging and 22 kW for 3 phase charging
    4. Type 2 connectors on both ends, compliant with IEC 62196-2
    5. Mechanical locking mechanism ensures secure connection during charging
    6. Durable, weather-resistant construction for outdoor use
    7. Integrated communications for safe and efficient charging Ergonomic design for easy operation and connection
    8. Compatible with a wide range of electric vehicles and charging stations
    9. Features LED indicator for charging status updates

    Product Specifications

    Definition Standard IEC 62196.1
    Charging mode 3
    Connection mode B
    Current type AC
    Housing color Black
    Cable color Black
    Environmental Performance Ambient temperature (working) -30～50℃
    Ambient temperature (storage) -40～80℃
    Highest altitude 2000M
    Ingress protection Working condition IP55,Protective cap IP54
    Mechanical Performance Insertion / Withdrawal cycles ＞10000times
    Insertion / Withdrawal force ＜100N
    Withstanding Impact force Charging interface can withstand 1 meter height drop and 2 tons of car rolling
    Electrical Performance Rated current 16A,32A
    Rated voltage 250V/480V
    Power contact number 3(L, N, PE) 5(L1, L2, L3, N, PE)
    Signal contact number 2(CP,PP)
    Signal pin current 2A
    Insulation resistance ＞100MΩ

    Product Advantages

    Ergonomic Design

    Available in different currents for choice. The stylish design of our EV charges combines functionality and beauty.




    Safe Charging

    Our EV chargers charge quickly and are compatible with Type 2, Type 1, GB, and NT connectors. They are also durable and have an IP67 rating.

    Durable Construction

    The handle of our charging guns is ergonomically designed, intuitive, and comfortable to use.

    Protective Plug Cover

    We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
