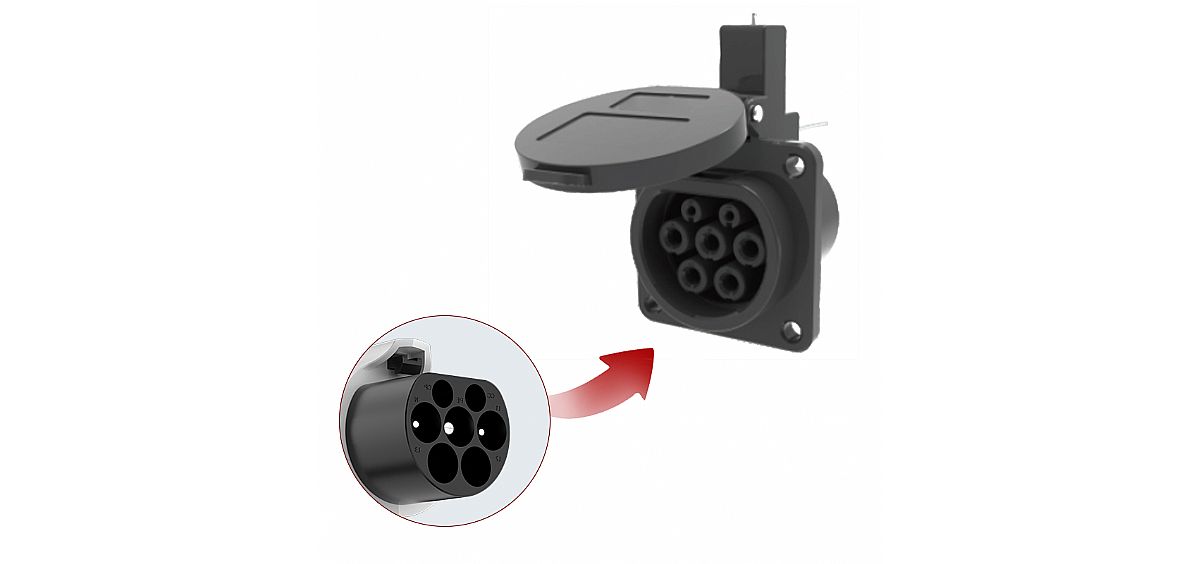

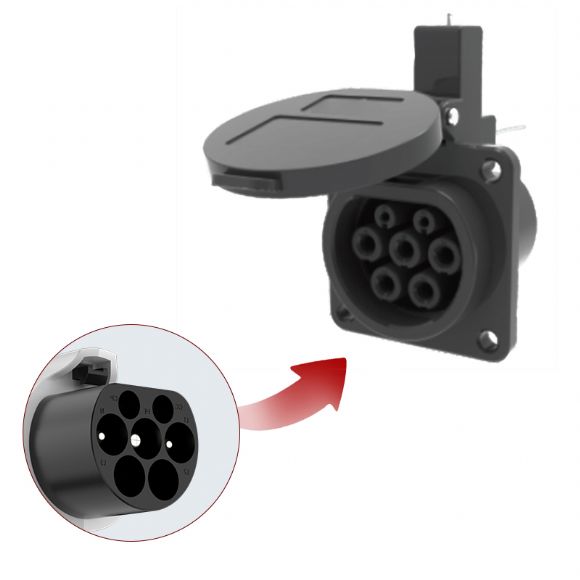

NEXWAY GB/T AC Dummy Socket

NEXWAY GB/T AC Dummy Socket - GPT-DS-AC01

Sample Title

Sample Text

    NEXWAY GB/T AC Dummy Socket Reliable Charging Solution for Electric Vehicles. 16A/250V; 32A/4400V; Good conductivity from well-manufactured silver-plated pins; IP54 protection level. A cover protects the pins inside. Robust casing material.

    Request a quote

    Features

    1. Similar to an actual AC socket, without an electrical connection function
    2. Used to simulate AC sockets for position or physical protection during installation or commissioning
    3. Made of insulating material to ensure safety
    4. Meets the size requirements of GB/T standards without conductive components
    5. Provides physical position to prevent dust and debris from entering the actual socket position.

    Product Specifications

    Definition Standard GB/T20234-2-2015
    Charging mode 3
    Connection mode B,C
    Current type AC
    Cable color Black
    Shell color Black
    Environmental Performance Ambient temperature (working) -30～50℃
    Ambient temperature (storage) -40～80℃
    Highest altitude 2000M
    Ingress protection Working condition IP55,Protective cap IP54
    Mechanical Performance Insertion / Withdrawal cycles ＞10000times
    Insertion / Withdrawal force ＜100N
    Withstanding Impact force The charging interface can withstand 1-meter height drop and 2 tons of car-rolling
    Electrical Performance Rated current 16A,32A
    Rated voltage 250V/440V
    Power contact number 3(L, N, PE) 5(L1, L2, L3, N, PE)
    Signal contact number 2(CP CC)
    Signal pin current 2A
    Insulation resistance ＞100MΩ

    Product Advantages

    Ergonomic Design

    The handle of our charging guns is ergonomically designed, intuitive and easy to hold and use.

    Safe Charging

    Our chargers are durable and have an IP54 rating. This high level of protection ensures reliable performance and longevity, even in challenging situations.

    Durable Construction

    The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins. This robust design ensures that the plug can withstand up to 10,000 times cycles.

    Protective Plug Cover

    We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
