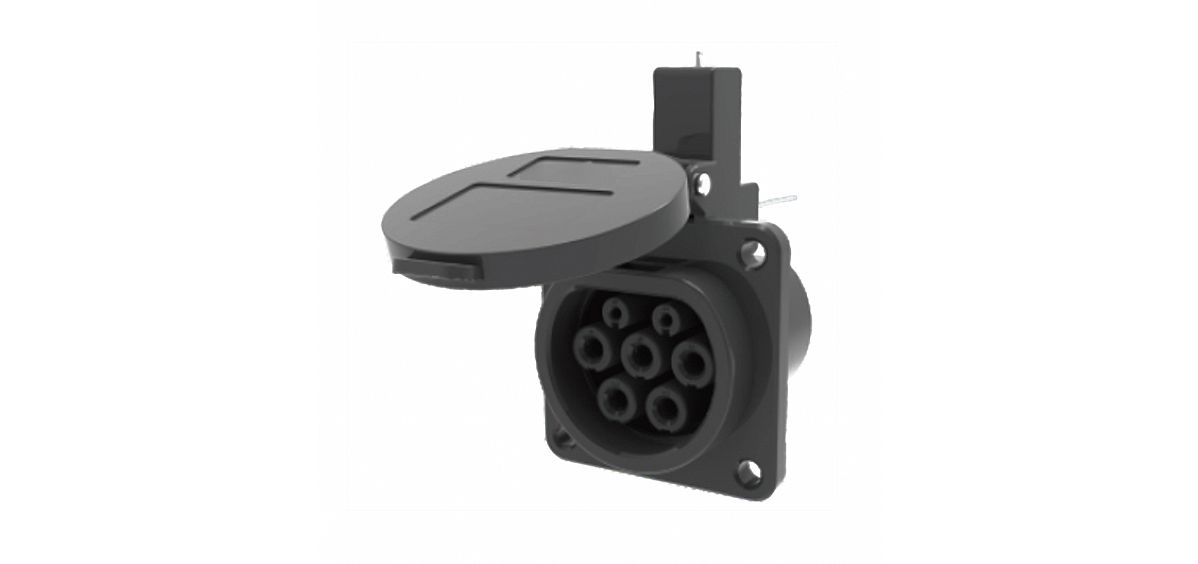

NEXWAY GB/T DC Dummy Socket

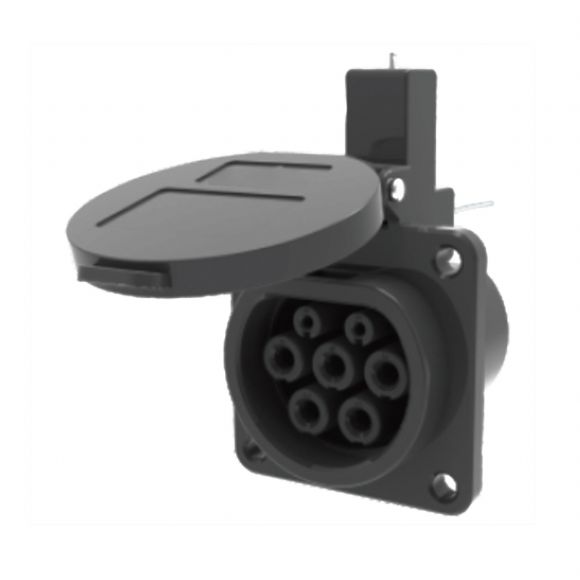

NEXWAY GB/T DC Dummy Socket - GPT-DS-DC01

Sample Title

Sample Text

    The NEXWAY GB/T DC Dummy Socket is efficient Charging for Electric Vehicles; 125A/750V; 250A/1000V. Good conductivity from well-manufactured silver-plated pins. IP54 protection level. A cover protects the pins inside. Robust casing material.

    Request a quote

    Features

    1. Similar to an actual DC socket, without an electrical connection function
    2. Used to simulate DC sockets for position or physical protection during installation or commissioning
    3. Made of insulating material to ensure safety
    4. Meets the size requirements of GB/T standards without conductive components
    5. Provides physical position to prevent dust and debris from entering the actual socket position.

    Product Specifications

    Definition Standard GB/T20234.3-2015
    Charging mode 4
    Connection mode C
    Current type DC
    Cable color Black
    Shell color Black
    Environmental Performance Ambient temperature (working) -30～50℃
    Ambient temperature (storage) -40～80℃
    Highest altitude 2000M
    Ingress protection IP54
    Mechanical Performance Insertion / Withdrawal cycles ＞10000times
    Insertion / Withdrawal force ＜140N
    Withstanding Impact force Charging interface can withstand 1 meter height drop and 2 tons of car rolling
    Electrical Performance Rated current 125A, 250A
    Rated voltage 750V/1000V
    Power contact number 3(DC+, DC-, PE)
    Signal contact number 6(A+, A-, CC1, CC2, S+, S-)
    Signal pin current 20A(A+, A-) 2A(CC1, CC2, S+, S-)
    Insulation resistance ＞100MΩ

    Product Advantages

    Ergonomic Design

    The handle of our charging guns is ergonomically designed, intuitive, and easy to hold and use.

    Safe Charging

    Our chargers are durable and have an IP54 rating. This high level of protection ensures reliable performance and longevity, even in challenging situations.

    Durable Construction

    The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins. This robust design ensures that the plug can withstand up to 10,000 times cycles.

    Protective Plug Cover

    We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
