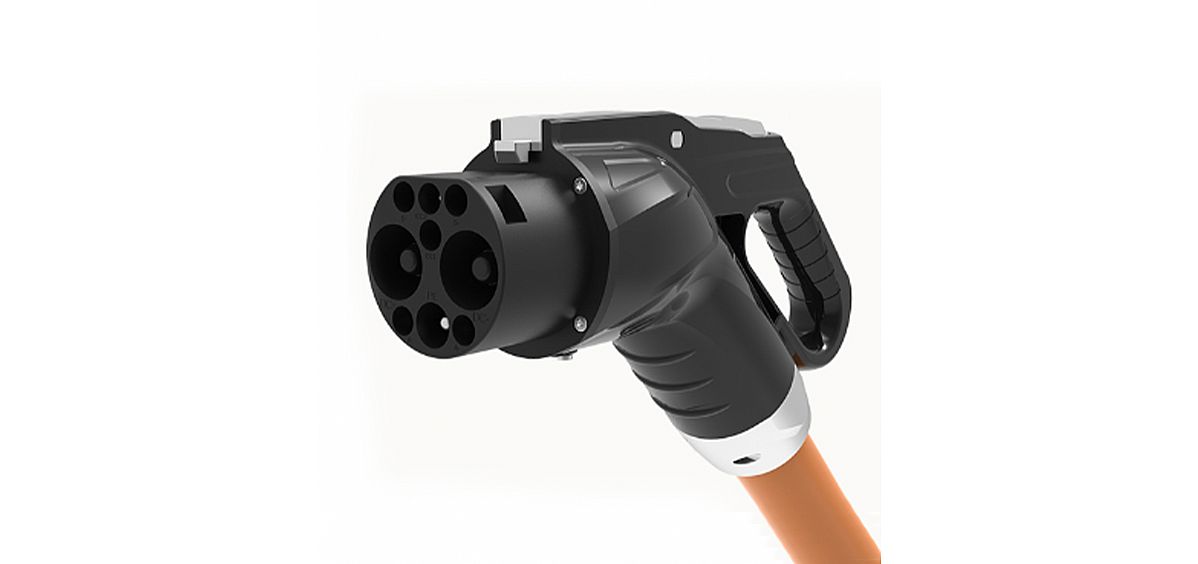

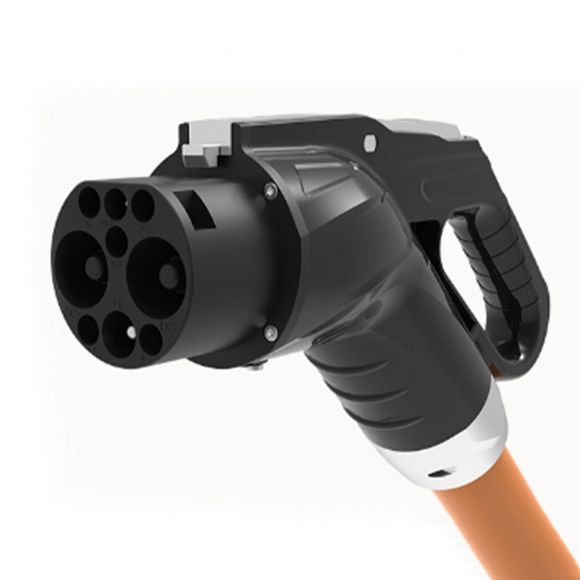

Standard DC 80-300A GBT Charging Connector DC Power Supply EV Charging
Sample Title
Sample Text
Black or Customized 80A,100A,125A,200A,250A,300A Compliant with the GB/T standard, suitable for various EV models, including BYD, NIO, XPeng, Ford, etc.
High power (80-300A), fast charging speed, capable of providing high power in a shorter time, shortening charging time
It supports high voltage, providing more power in a shorter time
Suitable for fast charging during long-distance travel, allowing drivers to get on the road quickly
Suitable for large-capacity battery electric vehicles (EV), including buses and heavy vehicles
More suitable for public charging stations, commercial fleets, and highway service areas.
Product Specifications
Definition
Standard
GB/T 20234.3-2015
Charging mode
4
Connection mode
C
Current type
DC
Cable color
Black
Shell color
Black
Environmental Performance
Ambient temperature (working)
-30～50℃
Ambient temperature (storage)
-40～80℃
Highest altitude
2000M
Ingress protection
IP54
Mechanical Performance
Insertion / Withdrawal cycles
＞10000times
Insertion / Withdrawal force
＜140N
Withstanding Impact force
Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance
Rated current
80A,100A,125A,200A,250A,300A
Rated voltage
750V/1000V
Power contact number
3(PE, DC+, DC-)
Signal contact number
4(S+ S-, CC1 CC2)
Signal pin current
2A
Insulation resistance
＞100MΩ
Product Advantages
Ergonomic Design
The handle of our charging guns is ergonomically designed, intuitive, and easy to hold and use.
Safe Charging
Our chargers are durable and have an IP54 rating. This high level of protection ensures reliable performance and longevity, even in challenging situations.
Durable Construction
The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins. This robust design ensures that the plug can withstand up to 10,000 times cycles.
Protective Plug Cover
We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
