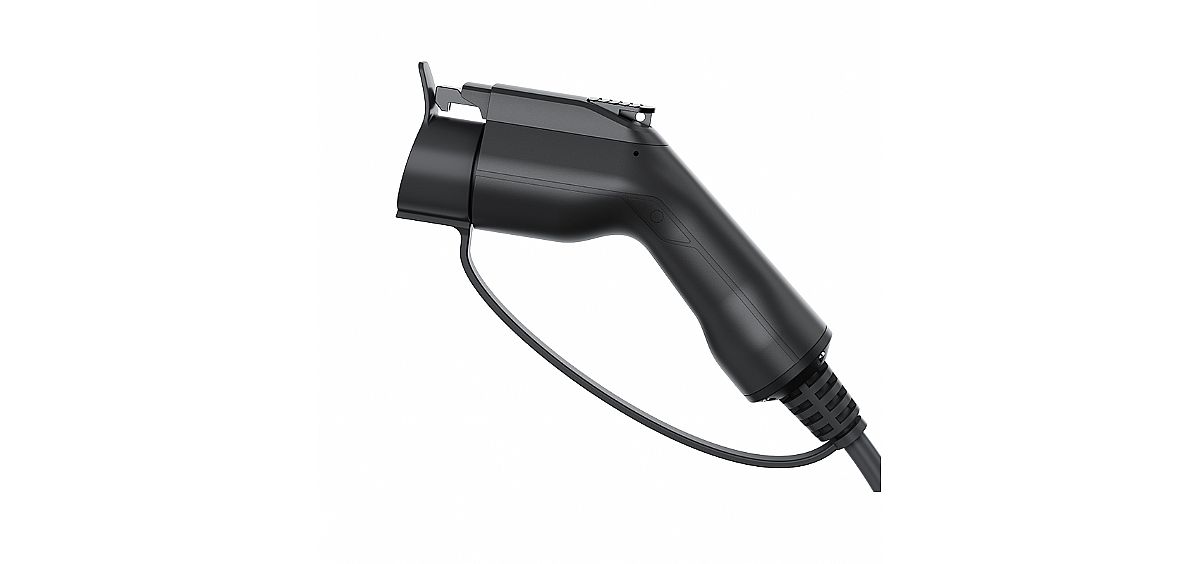

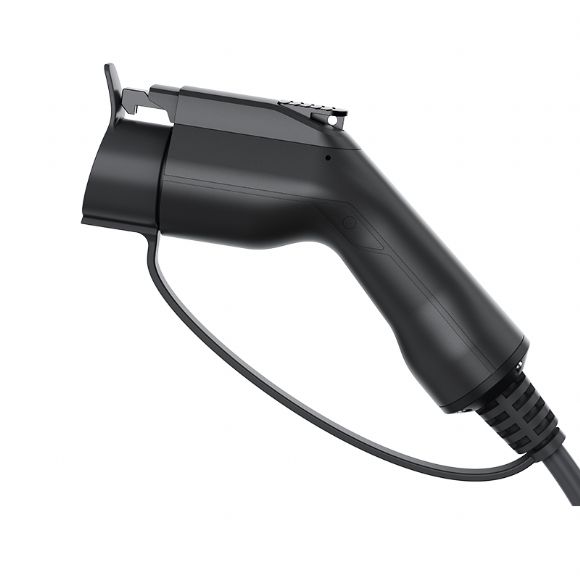

Nexway 16-80A, IP67 SAE J1772 Type 1 AC EV charger Plugs

Nexway 16-80A, IP67 SAE J1772 Type 1 AC EV charger Plugs - USJ02

Sample Title

Sample Text

    The Nexway 16-80A, IP67 SAE J1772 Type 1 AC EV charger Plugs are factory wholesale AC charging cables with vehicle charging plugs and free cable ends for fast charging of electric vehicles (EV) with alternating current (AC) via a type 1 vehicle inlet, for installation at electric vehicle charging stations (EVSE).

    Request a quote

    Features

    1. Made of high-quality, durable plastic and metal
    2. Designed with high-temperature resistant materials
    3. Available in a variety of colors
    4. Ergonomic handle with additional rubber grip components for easy operation
    5. Usually equipped with a locking mechanism to ensure a secure connection
    6. It can be used with adapters to be compatible with other connector types
    7. Various cable lengths are available based on customer needs

    Product Specifications

    Definition Standard SAE J1772
    Charging mode 3
    Connection mode C
    Current type AC
    Housing color Black
    Shell color Black
    Environmental Performance Ambient temperature (working) -30～50℃
    Ambient temperature (storage) -40～80℃
    Highest altitude 2000M
    Ingress protection IP67/type 4
    Mechanical Performance Insertion / Withdrawal cycles ＞10000times
    Insertion / Withdrawal force ＜75N
    Withstanding Impact force Charging interface can withstand 1 meter height drop and 2 tons of car rolling
    Electrical Performance Rated current 16A,32A,40A,50A,65A,80A
    Rated voltage 110V/240V
    Power contact number 3(L, N, PE)
    Signal contact number 2(CS,CP)
    Signal pin current 2A
    Insulation resistance ＞100MΩ

    Product Advantages

    Ergonomic Design

    The handle of our charging guns is ergonomically designed, intuitive, and easy to hold and use.

    Safe Charging

    Our chargers are durable and have an IP67 rating. This high level of protection ensures reliable performance and longevity, even in challenging situations.

    Durable Construction

    The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins. This robust design ensures that the plug can withstand up to 10,000 times cycles.

    Protective Plug Cover

    We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
