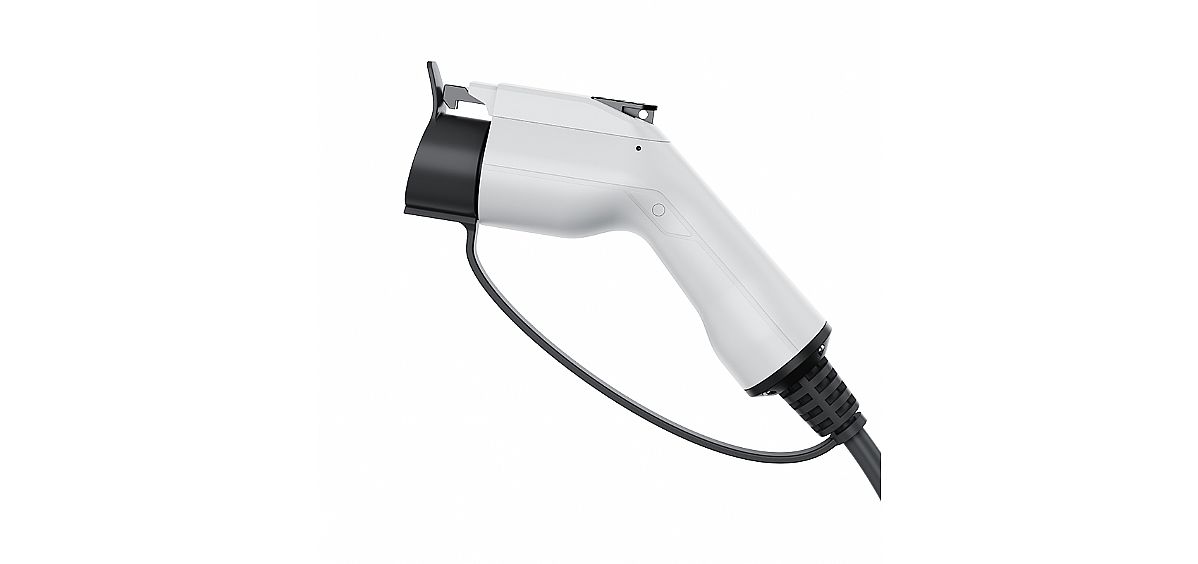

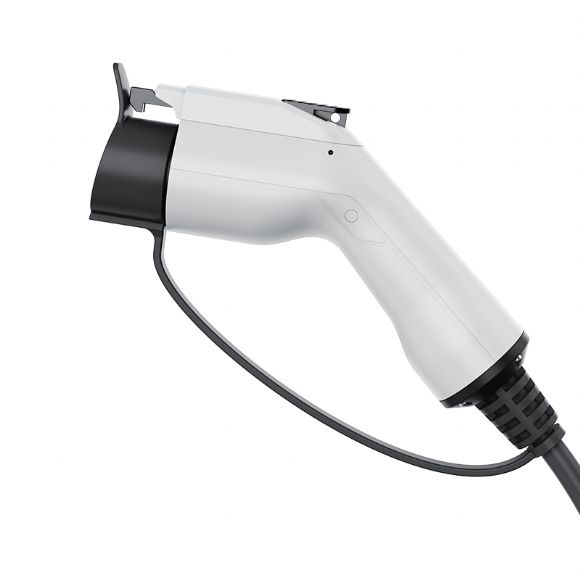

Nexway AC SAE J1772 Type 1 EV Plug Connector

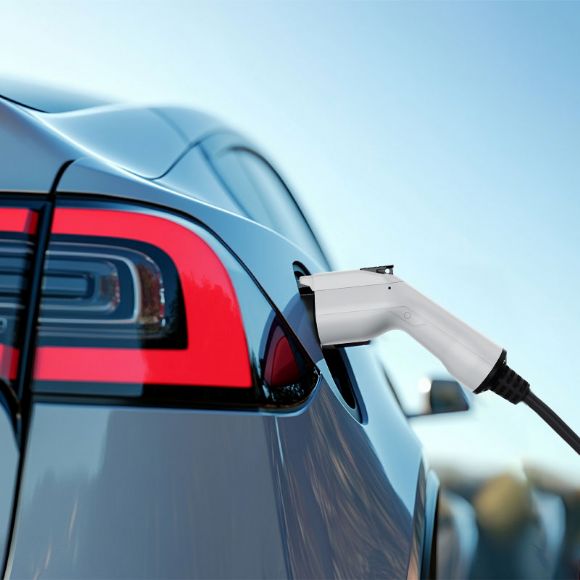

The Nexway AC SAE J1772 Type 1 EV Plug Connector for Electric Car Charging 16-48A, with vehicle charging plug and free cable ends, is for fast charging electric vehicles (EV) with alternating current (AC) via a type 1 vehicle inlet and is for installation at electric vehicle charging stations (EVSE).

Request a quote

Features

Made of high-quality, durable plastic and metal
Designed with high-temperature resistant materials
Available in a variety of colors
Ergonomic handle with additional rubber grip components for easy operation
Usually equipped with a locking mechanism to ensure a secure connection
It can be used with adapters to be compatible with other connector types
Various cable lengths are available based on customer needs

Product Specifications

Definition	Standard	SAE J1772
	Charging mode	3
	Connection mode	C
	Current type	AC
	Housing color	Black
	Shell color	Black
Environmental Performance	Ambient temperature (working)	-30～50℃
	Ambient temperature (storage)	-40～80℃
	Highest altitude	2000M
	Ingress protection	type 3R / type 3S
Mechanical Performance	Insertion / Withdrawal cycles	＞10000times
	Insertion / Withdrawal force	＜75N
	Withstanding Impact force	Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance	Rated current	16A,32A,40A,48A
	Rated voltage	110V/240V
	Power contact number	3(L, N, PE)
	Signal contact number	2(CS,CP)
	Signal pin current	2A
	Insulation resistance	＞100MΩ

Product Advantages

Ergonomic Design

The handle of our charging guns is ergonomically designed, intuitive, and easy to hold and use.

Safe Charging

Our chargers are durable and have an IP67 rating. This high level of protection ensures reliable performance and longevity, even in challenging situations.

Durable Construction

The plug is constructed from high-quality materials, including thermoplastic and copper alloy pins. This robust design ensures that the plug can withstand up to 10,000 times cycles.

Protective Plug Cover

We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
