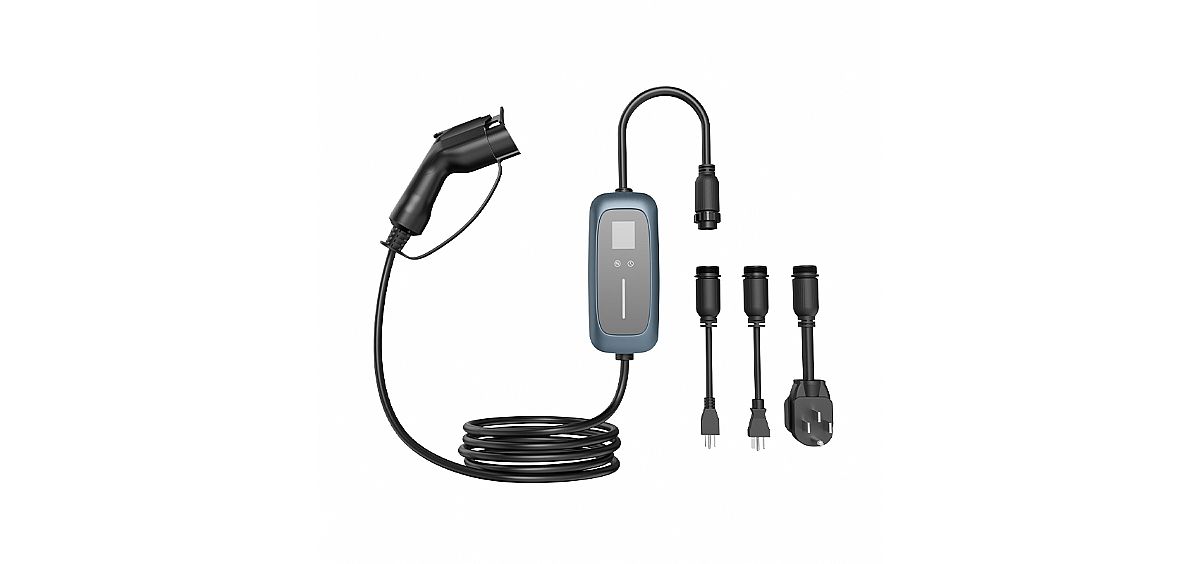

Type1 Portable EV Charger,6-32A 1-p, with App, CE approved
Sample Title
Sample Text
Sample Title
Sample Text
Glass screen, able to pass crash tests, advanced design, excellent charging experience, meets all charging needs. Color: Support customized Car Fitment: Nissan, Volkswagen, BMW, Toyota, Hyundai etc Certification: CE OEM/ODM: Highly supportive and can provide sample Warranty: 2 years For Application: Commercial, Workplace, Hotel, Home/Residential, and Public EV Charging
Comply with SAE J1772 standard, can charge new energy vehicles manufactured in the United States and Japan.
Adopt the third-generation design concept, beautiful appearance. The handheld design conforms to the principle of ergonomics and is easy to plug and unplug. The pin head adopts an insulated design to avoid direct contact with the hand. Customers can install the charger indoors or outdoors according to actual needs. The control box layout adopts a display function to display the current voltage, charging status and circuit board temperature in real time.
The XLPO used for cable insulation is aging-resistant and prolongs the service life of the product. The TPU sheath prolongs the bending life and wear resistance of the cable. It is the best material on the market and meets EU standards.
The product protection level reaches IP 55 (working state). In harsh environments, the product can isolate water and enhance the safety of product use.
Adopt a two-color coating design and support custom colors (such as orange, blue, green, gray, and white).
Reserve laser marking space for customers. Provide OEM/ODM services, which is conducive to customers to expand the market.
Product Specifications
Definition
Standard
SAE J1772
Charging mode
2
Connection mode
B
Current type
AC
Housing color
Black
Cable color
Black
Environmental Performance
Ambient temperature (working)
-30~50℃
Ambient temperature (storage)
-40~80℃
Highest altitude
2000M
Ingress protection
type 3R / type 3S
Mechanical Performance
Insertion / Withdrawal cycles
>10000times
Insertion / Withdrawal force
<75N
Withstanding Impact force
Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance
Rated current
40A
Rated voltage
240V
Power contact number
3(L, N, PE)
Signal contact number
2(CP,CS)
Signal pin current
2A
Insulation resistance
>100MΩ
Product Advantages
Ergonomic Design
Available in three series: Sonic Series, Mega Series, and Para Series. Our EV chargers' stylish design combines functionality and beauty.
Safe Charging
Our EV chargers charge quickly and are compatible with Type 2, Type 1, GB, and NT connectors. They are also durable and have an IP67 rating.
Durable Construction
The handle of our charging guns is ergonomically designed, intuitive, and comfortable to use.
Protective Plug Cover
We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
