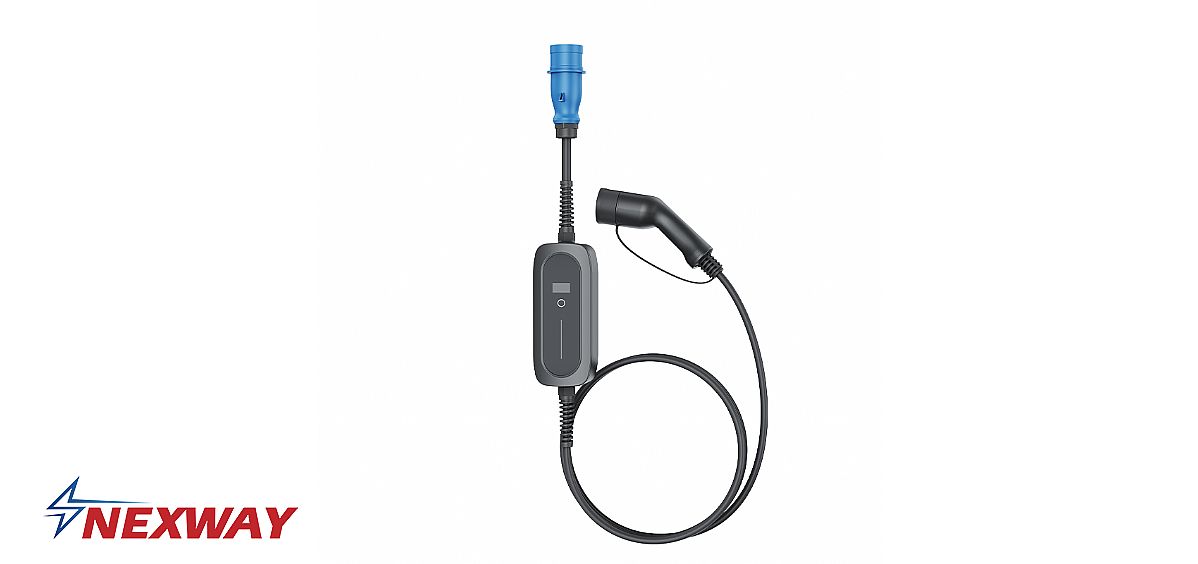

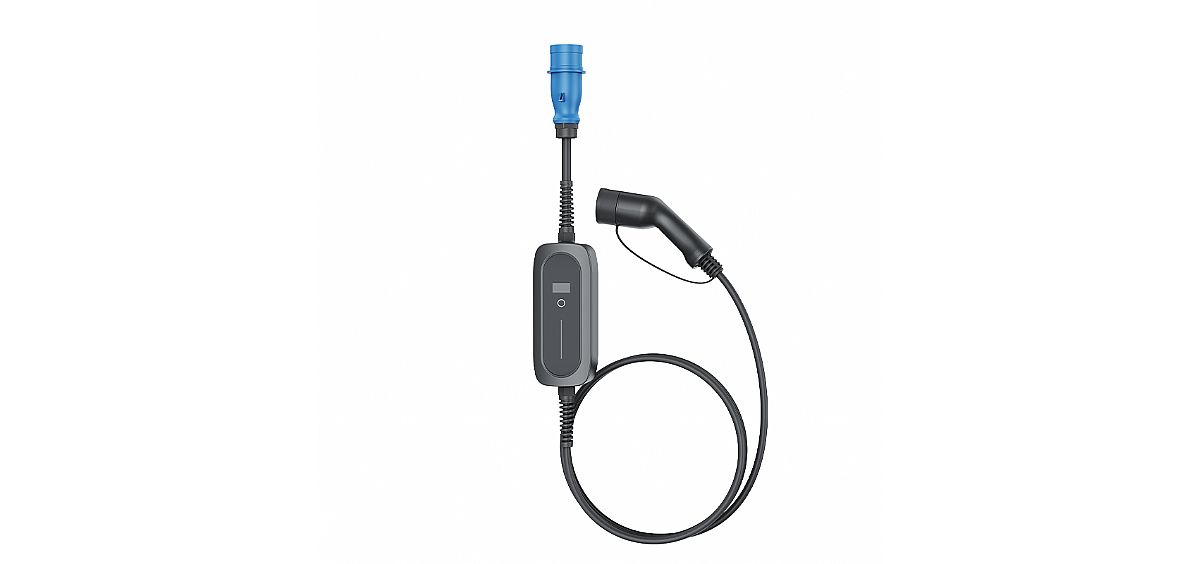

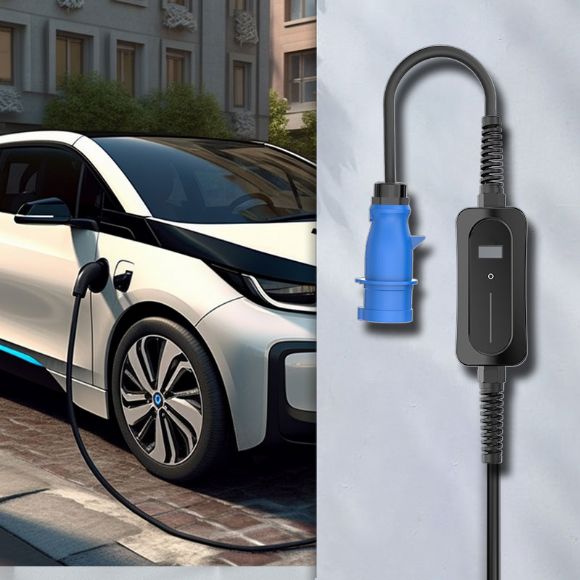

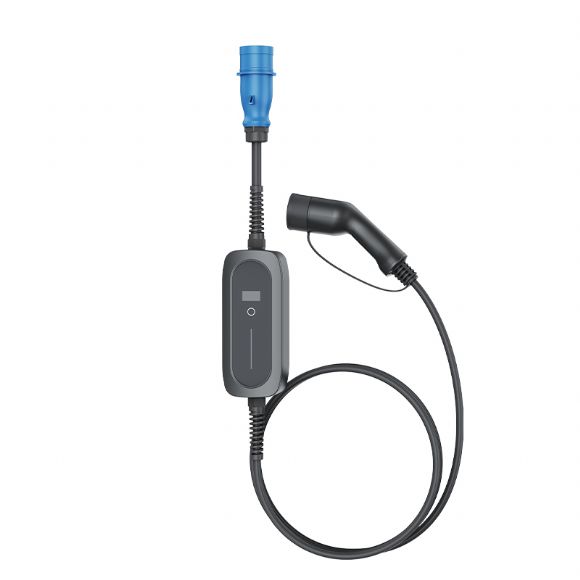

6-40A, 1-p, no screen, Type2 mode 2 EV charger Switchable plug, self current adapt

The Type 2 Mode 2 EV Charger is designed for durability, with over 10,000 insertion/withdrawal cycles, ensuring long-lasting performance. Its no-screen display offers a simple and streamlined design, focusing on functionality and ease of use.

This charger supports current regulation from 6A to 40A and features a switchable plug. It is compatible with both single-phase (220V, 7.4 kW) and three-phase (380V, 22 kW) power inputs, allowing it to adapt easily to different charging scenarios.

The charger includes a built-in control box (IC-CPD) that monitors real-time current, voltage, and temperature, ensuring safe and efficient charging.

Request a quote

More Info

Available in optional cable lengths such as 5 meters, 8 meters, and 10 meters, the charger comes equipped with a convenient storage bag for portability. It boasts an IP56 protection level, providing dustproof and waterproof capabilities, making it suitable for various environments.

Attractive price, with power-off protection, comprehensive product functions
Connector Type: Type 1, Type 2 or GB/T
Brand: Support customized
Car Fitment: Volkswagen, Peugeot, BMW, Toyota, Hyundai, Volvo etc
OEM/ODM: Highly supportive and can provide sample
Warranty: 2 years

Product Specifications

Electrical Specification Standard IEC 62196-2:2016
Charging mode 2
Connection mode B
Current type AC
Housing color Black
Cable color Black
Working Environment Ambient temperature (working) -30~50℃
Ambient temperature (storage) -40~80℃
Highest altitude 2000M
Ingress protection IP56
Mechanical Performance Insertion / Withdrawal cycles >10000 times
Insertion / Withdrawal force <100N
Withstanding Impact force Charging interface can withstand 1 meter height drop and 2 tons of car rolling
Electrical Performance Rated current 6A,8A,10A,13A,16A,32A,40A
Rated voltage 250V
Power contact number 3(L, N, PE)
Signal contact number 2(CP PP)
Signal pin current 2A
Signal contact current >100MΩ

Product Advantages

Ergonomic Design

Available in three series: Sonic Series, Mega Series, and Para Series. Our EV chargers' stylish design combines functionality and beauty.





Safe Charging

Our EV chargers charge quickly and are compatible with Type 2, Type 1, GB, and NT connectors. They are also durable and have an IP67 rating.

Durable Construction

The handle of our charging guns is ergonomically designed, intuitive, and comfortable to use.

Protective Plug Cover

We offer customized solutions, including different cable lengths and specifications. Customize your charging setup to meet your specific needs and preferences perfectly.
