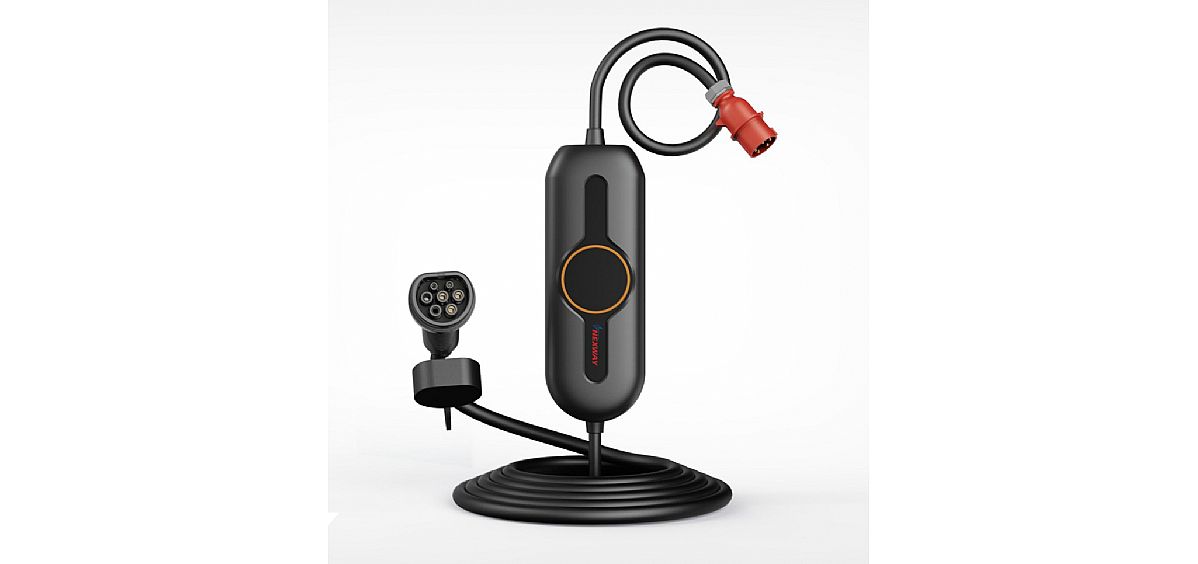

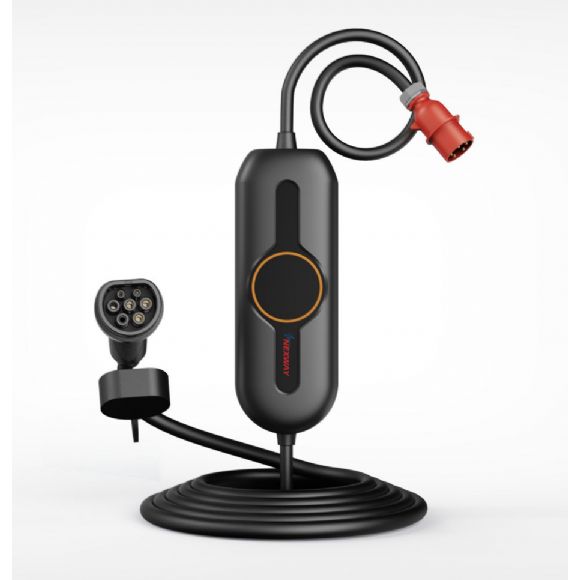

IP67 22kw Type 2 6A-32A Three Phase Portable EV Charger for home use

The IP67 22kW Type 2 6A-32A Three Phase EV charging connectors are designed for durability, safety, and versatility, making them ideal for wholesale suppliers. These connectors feature a Smart Adapter that automatically detects the adapter type and adjusts the charging power accordingly, ensuring optimal performance. To enhance safety, they are equipped with an Anti-Mismatched Plugging/Unplugging mechanism, which includes a mechanical adapter lock (reverse buckle) requiring simultaneous opposing forces to unlock, preventing accidental disconnection during charging.

Rated IP67, the connectors provide excellent dustproof and waterproof protection, ensuring reliable operation in various environments. Their Lightweight Design incorporates flexible and easy-to-bend cables, allowing for effortless positioning at various angles and enhancing portability. Compatible with all European Standard AC Plug electric vehicles, these connectors are versatile and widely applicable.

Request a quote

More Info

The Durable Metal Control Box ensures safe charging with comprehensive safety measures, including overcurrent, overvoltage, undervoltage, leakage, and overheating protection. Additionally, the connectors are built to withstand up to 3-ton Load Capacity, preventing damage from accidental vehicle wheel crushing.
For added convenience, the Portable Charging Adapters support a wide range of adapter types and are compatible with all household and industrial socket standards, eliminating location constraints for charging. The included Wall Bracket allows the charger to be easily detached for on-the-go use, combining practicality with flexibility.
These features make the IP67 22kW Type 2 EV charging connectors a reliable, safe, and user-friendly solution for diverse charging needs.

Can recognize the charging plug and automatically adjust to the correct charging current
Color: Support customized
Car Fitment: Nissan, Volkswagen, BMW, Toyota, Hyundai etc
Certification: CE
OEM/ODM: Highly supportive and can provide sample
Warranty: 2 years
For Application: home, on the go

Product Specifications

Electric Parameters Rated Voltage 250V AC
Rated Current 6A 32A 113phase
Frequency 50HZ/60HZ
Insulation Resistance >100MΩ
Terminal Temperature Rise <50K
Withstand voltage 2500V
Contact Resistance 0.5mΩ Max
RCD TYPE B
Mechanical Performance Mechanical Life >10000 times no-load plug in/out
Coupled Insertion Force 100N
Withstandable Impact Dropping from a 1m-height & running-over by a 3T vehicle
Material Enclosure Thermoplastic, UL94 V-0 flame retardant grade
Cable Material TPU
Terminal Silver-plated copper alloy
Safety and Warranty Ingress Protection IP55 for the EV connector and lP67 for the control box
Certifcates TUV/CB/CE/UKCA
Certifcation Standard IEC62196
Warranty 1 year or 10000 times no-load plug in/out
Environment Working Temperature  -30°C to +50°C
Storage Temperature  -40'C to +80°C
Working Altitude <5000m

Product Advantages

Personalized Design

Supports charging with single-phase or three-phase power supply, with a maximum current of 32A and charging power ranging from 1.4kW to 22kW. Fully charge your vehicle in just 3-4 hours.

Integrated Circuit Breaker

Comprehensive protection against both DC and AC faults eliminates the need for additional ground-fault protection sockets at home, saving you extra costs and labor.

Two-in-One Charging Solution

The portable charger allows you to plug and charge anytime, anywhere.

Thoughtfully Designed Wall Bracket

The carefully crafted wall bracket transforms it into a wall-mounted charging station.
