Key Specifications of the A Series:
Model
|
A SERIES |
| Rated Voltage |
95-270V AC |
| Rated Current |
32A |
| Protection Level |
IP54
|
| Frequency |
50-60Hz |
| Insulation Resistance |
>10MΩ
|
| Contact Resistance |
≤0.5mΩ |
| Insertion Force |
≤100N |
| Operating Temperature |
-40℃ to +50℃ |
| Ambient Temperature |
-40℃ to +80℃ |
| Humidity |
5%-95RH
|
| Weight |
3.8kg |
| Total Length |
5m/10m
|
| Standards Compliance |
GB/T20234.1-2015GB/T20234.2-2015
GB/T18487.1-2015NB/T33008.2-2018
|
Outstanding Features:
1. High Waterproof Rating (IP54):
The A Series charging stations can be safely used outdoors, preventing damage or safety risks caused by rain and other weather conditions.
2. Durable Hard Plastic Shell:
The lightweight and robust hard plastic casing ensures easy installation and high cost-efficiency, making it a practical choice for every EV owner.
3. Standardized Charging Gun:
Equipped with a national standard charging gun, the A Series ensures safety and reliability. The conductive terminals are made from H62 brass with silver plating, and the shell is constructed from imported PC material with a flame retardant rating of UL94V-0 and UV resistance certified to ULf1 standards.
4. Emergency Switch Design:
For enhanced safety, the A Series features an emergency button that can be pressed to stop the charging process immediately in case of any emergency.
5. Card Swiping and Anti-Theft Function:
Ideal for community underground garages, the card-swiping charging option offers greater security and control. It prevents unauthorized use and ensures that only authorized users can charge their vehicles.
6. Plug and Play Convenience:
The highly cost-effective plug-and-play model is perfect for most EV owners. It allows for quick and easy connection directly to the vehicle, eliminating the need for card or authentication processes.

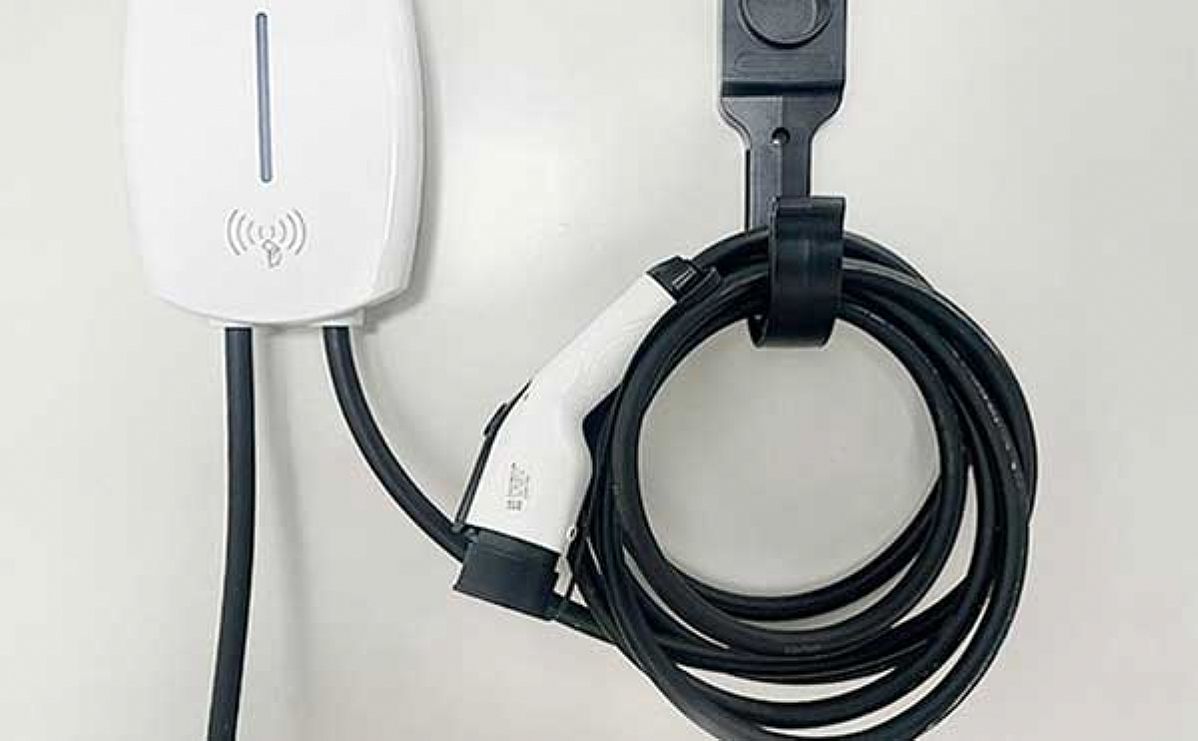

The A Series Home AC New Energy Electric Vehicle Charging Stations are designed with the modern EV owner in mind. They combine state-of-the-art technology with user-friendly features to provide a superior charging experience. Embrace the future of home EV charging with the A-Series and enjoy the peace of mind that comes with a reliable, safe, and efficient charging solution.
